Woven Wire Mesh of Various Materials! Support Processing and Customization! Real Source Factory and manufacturer ! Saving Money and Time for Customers!
1 Years
| Ask Lasest Price | |
| Model Number : | HH-FINEWIRE |
| Certification : | ISO9001-2015 |
| Price : | contact with us |
| Payment Terms : | L/C, T/T, Western Union, Alipay |
| Supply Ability : | 3000 spool PER 30 DAYS |
| Delivery Time : | within 7 work days |
Grade: AISI316L
Wire diameter;0.04mm (0.00157 inch)
Micron size: 40 microns
Diameter tolerance: ±0.001mm
Tensile Strength(N / mm2):686-980
Elongation(%):20-30%
weight:250-600g or customized (0.55-1.32LB)
Temper: Annealed and Soft

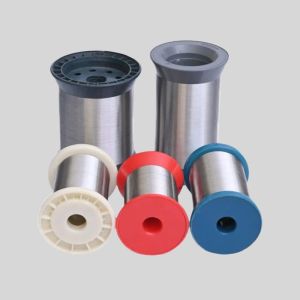

Introducing our Stainless Steel Ultra fine Wire Yarn, the epitome of durability, precision, and versatility. Crafted from high-grade stainless steel,AISI 302,321,304,316,316L which are typically made-to-order. this wire offers unparalleled strength and resilience, making it ideal for a myriad of applications across various industries.
Stainless Steel Ultra fine Wire Yarn, characterized by its ultra small diameter, typically less than 0.08mm, is favored for its strength, durability, and corrosion resistance, but Canaan Metal can produce the wire diameter with 0.025-0.05mm which is very ultra thin, half of head hair.
It is mainly divided into soft wire, hard wire, welding wire, etc., and is widely used in textile, filters, medical equipment, decoration/fabric, etc. In the fields of jewelry, fabrics, stainless steel wire ropes, stainless steel wire mesh, stainless steel wire springs, etc., it has the characteristics of corrosion resistance, high temperature resistance, and high tensile strength.

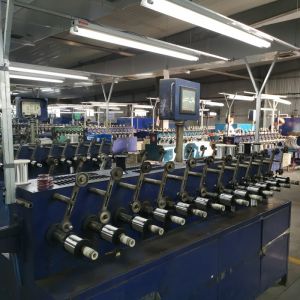

The production methods of Stainless Steel Ultra fine Wire Yarn include traditional drawing and cutting method, melting and drawing method, cluster drawing method, scraping method, cutting method, etc. At present, the smallest fiber diameter can reach 0.025mm and the longest length can reach tens or even hundreds of meters.
| Type | d1 | d2 | d3 | L1 | L2 | Capacity approx. Kgs |
| HK63/45/16 | 63.0 | 44.0 | 16.0 | 85.0 | 60.0 | 0.30 |
| HK76/45/16 | 76.0 | 50.0 | 16.0 | 95.0 | 65.0 | 0.60 |
| HK80/45/16 | 80.0 | 55.0 | 16.0 | 100.0 | 70.0 | 08.0 |
| HK80/45/20 | 80.0 | 55.0 | 20.0 | 100.0 | 70.0 | 08.0 |
| HK100/59-160 | 100.0 | 75.0 | 59.0 | 160.0 | 91.0 | 2.00 |
| HKV100/45/16 | 100.0 | 56.0 | 16.0 | 100.0 | 49.0 | 1.20 |
| HK115 | 115.0 | 90.0 | 25.0 | 138.0 | 75.0 | 2.00 |
| HKV125/45/16 | 125.0 | 71.0 | 16.0 | 125.0 | 65.0 | 3.00 |
| HK130/82-176 | 130.0 | 99.0 | 82.0 | 176.0 | 91.0 | 3.00 |
| HKV160/45/22 | 160.0 | 90.0 | 22.0 | 160.0 | 85.0 | 7.50 |
|
|
