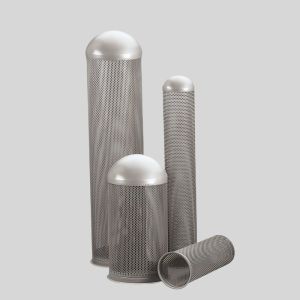

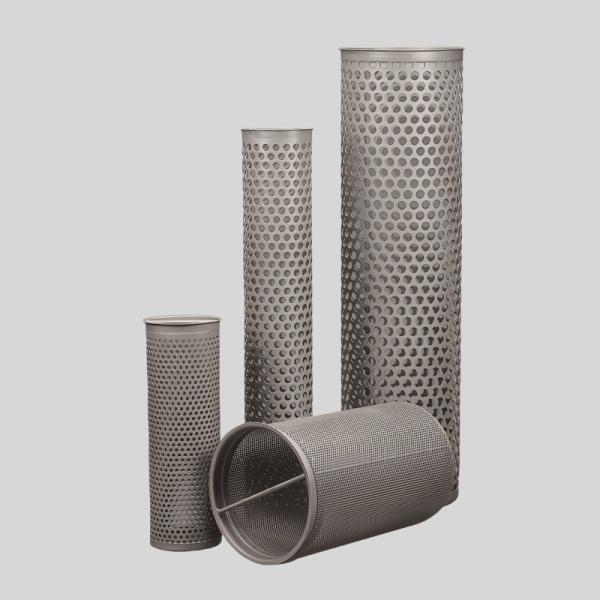

    Metal Mesh Filter Bag Support Baskets 9/64"


    Metal Mesh Filter Bag Support Baskets for Bag Filter Housings


    Quick details of Metal Mesh Filter Bag Support Baskets


    • Material: perforated metal mesh
    • Standard design perforated opening diameter is 9/64", with a high opening ratio and suitable for filter bags of all standard sizes.
    • Available in a variety of standard sizes
    • Great corrosion and chemical resistance, easy to clean
    • Filter area: 0.05 m2 to 0.5 m2
    • Filter rating: 5–5000 μm

    Description of Metal Mesh Filter Bag Support Baskets


    Filter bag support basket is a key element of bag filters. In the filtration process, filter bag meets industrial filtration precision requirements, however, it has a low impact strength and is easily damaged. Filter bag support basket is provided to support and protect the filter bag. It not only greatly reduces the use cycle of replacing the filter bag, but also plays the role of coarse filter.


    Specification of Metal Mesh Filter Bag Support Baskets


    Specification of Filer Bag Support Baskets
    Item No.Support Basket for 1# Filter BagsSupport Basket for 2# Filter BagsSupport Basket for 3# Filter BagsSupport Basket for 4# Filter Bags
    Material304/316
    Weight (kg)1.32.50.30.6
    Height (mm)345730185335
    Diameter (mm)178 mm109 mm
    SizeHole diameter 3.5 mm, center spacing 4.7 mm
    Surface treatmentElectrolytic polishing

    Applications of Metal Mesh Filter Bag Support Baskets

    • Filtration for discharge water and process water

    • Filtration for cooling liquid or cutting oil

    • Lubricating oil filtration

    • Filtration for oil paint, resin, and solvent

    • Bulk chemical filtration

    • Filtration for components cleaning system

    • Adhesive filtration
