Stainless Steel Pleated Cartridge for for Polymer Melt Filtration

Quick details of Stainless Steel Pleated Cartridge

• Material:SS304, SS316, SS316L.
• Filter rating:1–300 μm.
• Filter efficiency:≥ 95%.
• Operating pressure:30 Mpa.
• Operating temperature:≤600°C.
• Main filter media:stainless steel sintered fiber web and stainless steel wire woven cloth.
• Installing form:standard (using O-ring to seal), thread, tie rod, flange, fast interface.

Description of Stainless Steel Pleated Cartridge

Stainless steel pleated cartridge is made of stainless steel woven mesh or stainless steel sintered felt after pleating and welding. It is generally installed in melt filters to remove impurities from polymer melts in chemical fiber, textile and plastics industries, therefore, it is also known as polymer candle filter or polymer melt candle filter.

• According to its filtration layer, it is divided into pleated wire mesh candle filters and pleated sintered fiber candle filters.
• The filter area of the pleated cartridge is 5-10 times as large as the traditional cartridge filter, which makes it dirt holding capacity and service life greatly improved.
• Filtration efficiency up to 95%
• Suitable for melt filter or high pressure, highly corrosive, high viscous or radioactive applications.
• Stainless steel construction can be reused after backwashing or ultrasonic cleaning.

Our cartridge types

Table 1: Specification of Stainless Steel Pleated Cartridge

Model	L	D	M	Filter Area	Filter Rating	Filter Media
	mm	mm		m2	μm
SSPC-86/200	200	86	M65 × 2P	0.2	3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75	Stainless steel sintered fiber felt, stainless steel wire cloth
SSPC-86/350	350			0.35
SSPC-86/500	500			0.5
SSPC100/800	800	100	M80 × 2P	1

Table 2: Specification of Stainless Steel Pleated Cartridge

Model	L	D	M	Filter Area	Filter Rating	Filter Media
	mm	mm		m2	μm
SSPC-65/250	250	65	226, 223, 220, 215	0.135	3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75	Stainless steel sintered fiber felt, stainless steel wire cloth
SSPC-65/500	500			0.38
SSPC-70/750	750	70		0.42
SSPC-70/750	750	70		0.6

Table 3: Specification of Stainless Steel Pleated Cartridge

Model	L	D	M	Filter Area	Filter Rating	Filter Media
	mm	mm		m2	μm
SSPC-35/102	102	35	M18, M20 × 2.5, M20 × 1.5, NPT1", 3/4-16	0.026	3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75	Stainless steel sintered fiber felt, stainless steel wire cloth
SSPC-35/207	207			0.07
SSPC-35/210	210			0.07
SSPC-35/242	242			0.08
SSPC-35/425	425			0.15
SSPC-35/485	485			0.2

Table 4: Specification of Stainless Steel Pleated Cartridge

Model	L	D	M	Filter Area	Filter Rating	Filter Media
	mm	mm		m2	μm
SSPC-62/180	180	62	G1"	0.09	3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75	Stainless steel sintered fiber felt, stainless steel wire cloth
SSPC-86/254	254	86	G2"	0.17
SSPC-86/381	381			0.2
SSPC-86/508	508			0.27
SSPC-86/760	760			0.58

Table 5: Specification of Stainless Steel Pleated Cartridge

Model	L	D	M	Filter Area	Filter Rating	Filter Media
	mm	mm		m2	μm

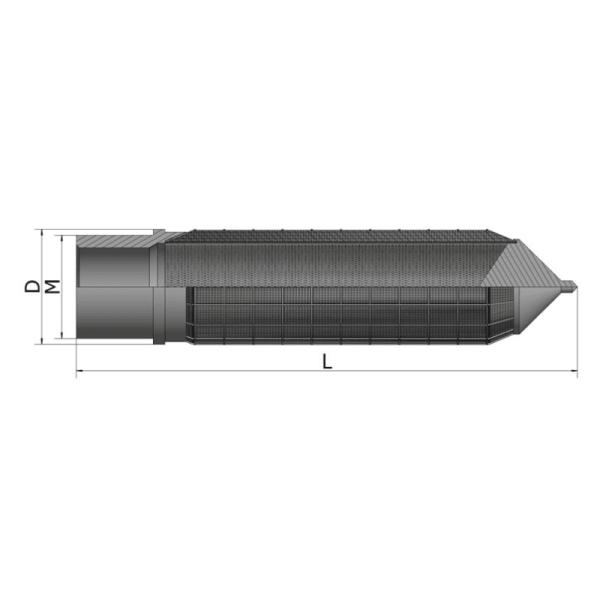

SSPC-60/1432	1432	60	2" × 12UN-2A	1.015	3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75	Stainless steel sintered fiber felt, stainless steel wire cloth
SSPC-60/1241	1241			0.98
SSPC-60/1025	1025			0.81

Table 6: Specification of Stainless Steel Pleated Cartridge

Model	L	D	M	Filter Area	Filter Rating	Filter Media
	inch	inch		m2	μm
SSPC-1.75/16.31	16.31	1.75	1.25"-12UNF-2A	0.2	3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75	Stainless steel sintered fiber felt, stainless steel wire cloth
SSPC-1.75/18.63	18.63			0.35
SSPC-1.75/31	31			0.5
SSPC-1.75/47	47			1

Table 7: Specification of Stainless Steel Pleated Cartridge

Model	L	D	M	Filter Area	Filter Rating	Filter Media
	mm	mm		m2	μm
SSPC-45/200	1432	45	1.25"-12UNF, 2"-12UN	1.015	3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75	Stainless steel sintered fiber felt, stainless steel wire cloth
SSPC-45/800	1241			0.98
SSPC-57/1023	1025	57		0.81

Table 8: Specification of Stainless Steel Pleated Cartridge

Model	L	D	M	Filter Area	Filter Rating	Filter Media
	mm	mm		m2	μm
SSPC-46/965	965	46	1.25"-12UN	0.52	3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75	Stainless steel sintered fiber felt, stainless steel wire cloth
SSPC-50/1020	1020	50	M42 × 2P	0.62
SSPC-60/1020	1020	60	M52 × 2P	0.8
SSPC-60/1210	1210			1

Table 9: Specification of Stainless Steel Pleated Cartridge

Model	L	D	M	Filter Area	Filter Rating	Filter Media
	mm	mm		m2	μm
SSPC-50/275	275	50	M30 × 1.5P	0.18	3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75	Stainless steel sintered fiber felt, stainless steel wire cloth
SSPC-50/525	525			0.33
SSPC-50/870	870			0.54
SSPC-50/1395	1395			0.8

Table 10: Specification of Stainless Steel Pleated Cartridge

Model	L	D	M	Filter Area	Filter Rating	Filter Media
	mm	mm		m2	μm
SSPC-60/400	400	45	M33 × 1.5P, M33 × 2P	0.4	3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75	Stainless steel sintered fiber felt, stainless steel wire cloth
SSPC-60/500	500			0.5
SSPC-60/1000	1000	57		1

Table 11: Specification of Stainless Steel Pleated Cartridge

Model	L	D	M	Filter Area	Filter Rating	Filter Media
	mm	mm		m2	μm
SSPC-62/1195	1195	62	M36 × 2P	0.6	3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75	Stainless steel sintered fiber felt, stainless steel wire cloth
SSPC-62/1395	1395			0.7

Table 12: Specification of Stainless Steel Pleated Cartridge

Model	L	D	M	Filter Area	Filter Rating	Filter Media
	mm	mm		m2	μm
SSPC-55/1245	1245	55	M33 × 2P	0.91	3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75	Stainless steel sintered fiber felt, stainless steel wire cloth
SSPC-55/1247	1247			0.91
SSPC-55/1347	1347			0.95
SSPC-55/1350	1350			0.95
