| Model Number : | HH-FROPE |
| Certification : | ISO9001-2015 |
| Payment Terms : | L/C,T/T,Western Union,MoneyGram |
| Supply Ability : | 50000 square meters per 20 days |
| Delivery Time : | within 7 work days |
Wire rope structure: 7x7, 7x19
Material: AISI 304, 316, 316L, and ISO/TS 15510:2003 standards
Opening angle: 20°, 30°, 60°, 70° and 75° are set as standard opening, and optimal stretched at 60°.
Ferrule type:both ferrule and opened ferrule available
Rope diameter:1.2mm-4mm
opening: 20mm-203mm

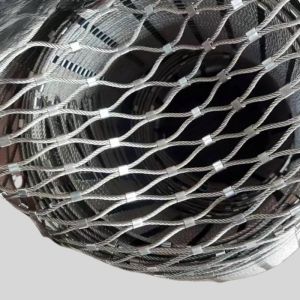

Wire rope ferrule mesh, also known as cable ferrule mesh or stainless steel ferrule rope mesh, is made of 304, 304L, 316 or 316L stainless steel materials. It combines both flexibility and stability and has a high strength-to-weight ratio, which fully reflects the super-toughness and plasticity of austenitic stainless steel.
As a new product in architectural decoration and protection, wire rope ferrule mesh adds a new fashionable element to modern architectural decoration and is increasingly favored by designers and clients around the world.
We have rich production and design experience, and provide various diameter options and flexible mesh aperture size solutions. Our products are widely used in public balustrades, zoo animal enclosures, bird netting, safety fences, green planting systems, etc.
| Wire Rope Structure | Wire Rope Diameter (D) | Mesh Aperture (M) | Minimum Breaking Force | ||
|---|---|---|---|---|---|
| inch | mm | inch | mm | (kN) | |
| 7 × 19 | 5/32" | 4.0 | 3" × 3" | 76 × 76 | 10.7 |
| 7 × 19 | 5/32" | 4.0 | 3.6" × 3.6" | 90 × 90 | 10.7 |
| 7 × 19 | 5/32" | 4.0 | 4" × 4" | 102 × 102 | 10.7 |
| 7 × 19 | 5/32" | 4.0 | 5" × 5" | 127 × 127 | 10.7 |
| 7 × 19 | 5/32" | 4.0 | 6" × 6" | 152 × 152 | 10.7 |
| 7 × 19 | 5/32" | 4.0 | 8" × 8" | 203 × 203 | 10.7 |
| 7 × 19 | 1/8" | 3.2 | 6" × 6" | 152 × 152 | 7.38 |
| 7 × 19 | 1/8" | 3.2 | 5" × 5" | 127 × 127 | 7.38 |
| 7 × 19 | 1/8" | 3.2 | 4.7" × 4.7" | 120 × 120 | 7.38 |
| 7 × 19 | 1/8" | 3.2 | 4" × 4" | 102 × 102 | 7.38 |
| 7 × 19 | 1/8" | 3.2 | 3.6" × 3.6" | 90 × 90 | 7.38 |
| 7 × 19 | 1/8" | 3.2 | 3" × 3" | 76 × 76 | 7.38 |
| 7 × 19 | 1/8" | 3.2 | 2.4" × 2.4" | 60 × 60 | 7.38 |
| 7 × 19 | 1/8" | 3.2 | 2" × 2" | 51 × 51 | 7.38 |
| 7 × 7 | 3/32" | 2.4 | 6" × 6" | 152 × 152 | 4.18 |
| 7 × 7 | 3/32" | 2.4 | 5" × 5" | 127 × 127 | 4.18 |
| 7 × 7 | 3/32" | 2.4 | 4" × 4" | 102 × 102 | 4.18 |
| 7 × 7 | 3/32" | 2.4 | 3.6" × 3.6" | 90 × 90 | 4.18 |
| 7 × 7 | 3/32" | 2.4 | 3" × 3" | 76 × 76 | 4.18 |
| 7 × 7 | 3/32" | 2.4 | 2.4" × 2.4" | 60 × 60 | 4.18 |
| 7 × 7 | 3/32" | 2.4 | 2" × 2" | 51 × 51 | 4.18 |
| 7 × 7 | 5/64" | 2.0 | 3" × 3" | 76 × 76 | 3.17 |
| 7 × 7 | 5/64" | 2.0 | 2.4" × 2.4" | 60 × 60 | 3.17 |
| 7 × 7 | 5/64" | 2.0 | 2" × 2" | 51 × 51 | 3.17 |
| 7 × 7 | 5/64" | 2.0 | 1.5" × 1.5" | 38 × 38 | 3.17 |
| 7 × 7 | 1/16" | 1.6 | 4" × 4" | 102 × 102 | 2.17 |
| 7 × 7 | 1/16" | 1.6 | 3" × 3" | 76 × 76 | 2.17 |
| 7 × 7 | 1/16" | 1.6 | 2.4" × 2.4" | 60 × 60 | 2.17 |
| 7 × 7 | 1/16" | 1.6 | 2" × 2" | 51 × 51 | 2.17 |
| 7 × 7 | 1/16" | 1.6 | 1.5" × 1.5" | 38 × 38 | 2.17 |
| 7 × 7 | 1/16" | 1.6 | 1.2" × 1.2" | 30 × 30 | 2.17 |
| 7 × 7 | 1/16" | 1.6 | 1" × 1" | 25.4 × 25.4 | 2.17 |
| 7 × 7 | 3/64" | 1.2 | 4" × 4" | 102 × 102 | 1.22 |
| 7 × 7 | 3/64" | 1.2 | 3" × 3" | 76 × 76 | 1.22 |
| 7 × 7 | 3/64" | 1.2 | 2" × 2" | 51 × 51 | 1.22 |
| 7 × 7 | 3/64" | 1.2 | 1.5" × 1.5" | 38 × 38 | 1.22 |
| 7 × 7 | 3/64" | 1.2 | 1.2" × 1.2" | 30 × 30 | 1.22 |
| 7 × 7 | 3/64" | 1.2 | 1" × 1" | 25.4 × 25.4 | 1.22 |
| 7 × 7 | 3/64" | 1.2 | 0.8" × 0.8" | 20 × 20 | 1.22 |
|
|
